Experienced R&D Team
<p>Our R&D team is driven by expertise and ingenuity, seeking breakthrough innovations.</p>
Professional Service Team
<p>We will respond to order inquiries within 24 hours. (7*24 hours service)</p>
Quality Management
<p>All of CTW's cable products are 100% final tested - this is the CTW quality assurance.</p>
Strong Productivity
<p>Overmolding of stationary production lines for high volume production and mass production capabilities.</p>
Related Products
More items about lvds wire
We Have The Best Solutions for Your Business
With nearly 20 years experience in the cable industry, CTW is a market-leader in the development and manufacture of cable technology, with state-of-the-art modern facilities in China.CTW provides complete manufacturing solutions from design and build, to packaging and logistics.
CTW supports customer R&D with our own dedicated team of development engineers: this capability truly sets us apart from our competition. Our engineers have access to their own laboratory equipped with much of the technology found in the factory including overmolding machines. Within this environment, prototypes and pilot builds and can be tested, SOPs written and fixtures prepared ahead of full-scale production.

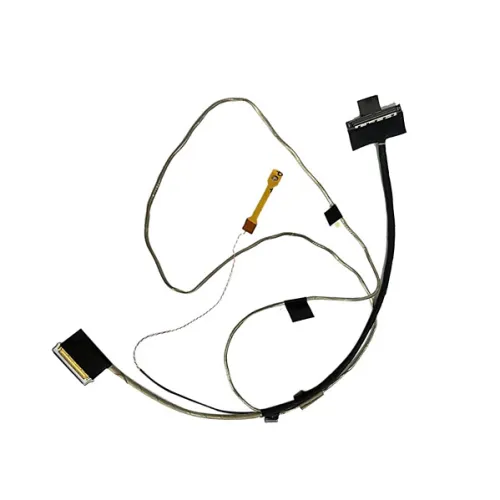

Types of LVDS Wire
LVDS wires come in various types to meet different application requirements. This includes single-pair and multi-pair configurations, as well as different wire gauges and impedance options. The choice of LVDS wire type depends on factors such as data rate, distance, and system design considerations. Manufacturers provide a range of LVDS wire options to accommodate specific application needs.
Characteristics of LVDS Wire
LVDS wires possess unique characteristics that contribute to their high performance. They use a differential signaling scheme, where data is transmitted as the voltage difference between two conductors. This approach provides excellent noise immunity, minimizing the impact of electromagnetic interference (EMI) on the transmitted signals. LVDS wires also have low voltage swing and impedance matching properties, enhancing their reliability and signal integrity.
Design Considerations for LVDS Wire Systems
Designing LVDS wire systems requires careful consideration of various factors. This includes impedance matching, proper routing and shielding techniques, and adherence to signal integrity guidelines. Designers must also ensure proper grounding and minimize the impact of electromagnetic interference on LVDS wire signals. Following best practices and design guidelines helps optimize the performance and reliability of LVDS wire systems.
Process Flow of LVDS Wire Production
The production of LVDS wires follows a systematic process flow. It starts with the selection of appropriate conductor materials and insulation to meet the required electrical and mechanical specifications. The wire conductors are then insulated, twisted or shielded, and jacketed to ensure proper signal integrity and protection. This is followed by quality control checks, including testing for electrical performance, before the LVDS wires are ready for use.
Frequently Asked Question
Do you have any question?
LVDS wires offer several advantages, including high-speed data transmission capability, low power consumption, and excellent noise immunity. They can transmit data over long distances without signal degradation, making them ideal for applications that require reliable and fast data communication.
LVDS wire is capable of supporting high data rates, typically ranging from several hundred megabits per second (Mbps) up to several gigabits per second (Gbps). The exact maximum data rate depends on various factors such as cable quality, transmission distance, and signal integrity considerations.
Yes, LVDS wire is commonly used for video transmission in applications such as displays and monitors. LVDS technology enables the high-speed transmission of video signals with excellent image quality and reduced power consumption. It is widely used in industries such as consumer electronics, automotive, and industrial applications.
LVDS wires operate with low voltage levels, typically around 1.2 to 3.5 volts. However, LVDS technology allows for differential signaling, which means the voltage difference between the two wires carries the data. This enables LVDS wires to be compatible with different voltage levels, as long as the receiving end properly interprets the differential signals.
